Light Steel Frame Structure Machine(LGSF/LSF) for Villa Construction

Light Steel Frame Structure Machine(LGSF/LSF) for Villa Construction

The Expert in Efficient and Precise Construction of Modern Homes

Light Steel frame villas are becoming increasingly popular in the construction industry. They have advantages such as fast construction speed, excellent seismic resistance, energy conservation and environmental protection, and flexible design. They are becoming the new favorite in the modern construction field.

The Light Steel Frame Roll Forming Machine is the main player in the entire process, quietly changing traditional construction methods and building high-quality living spaces for thousands of families.

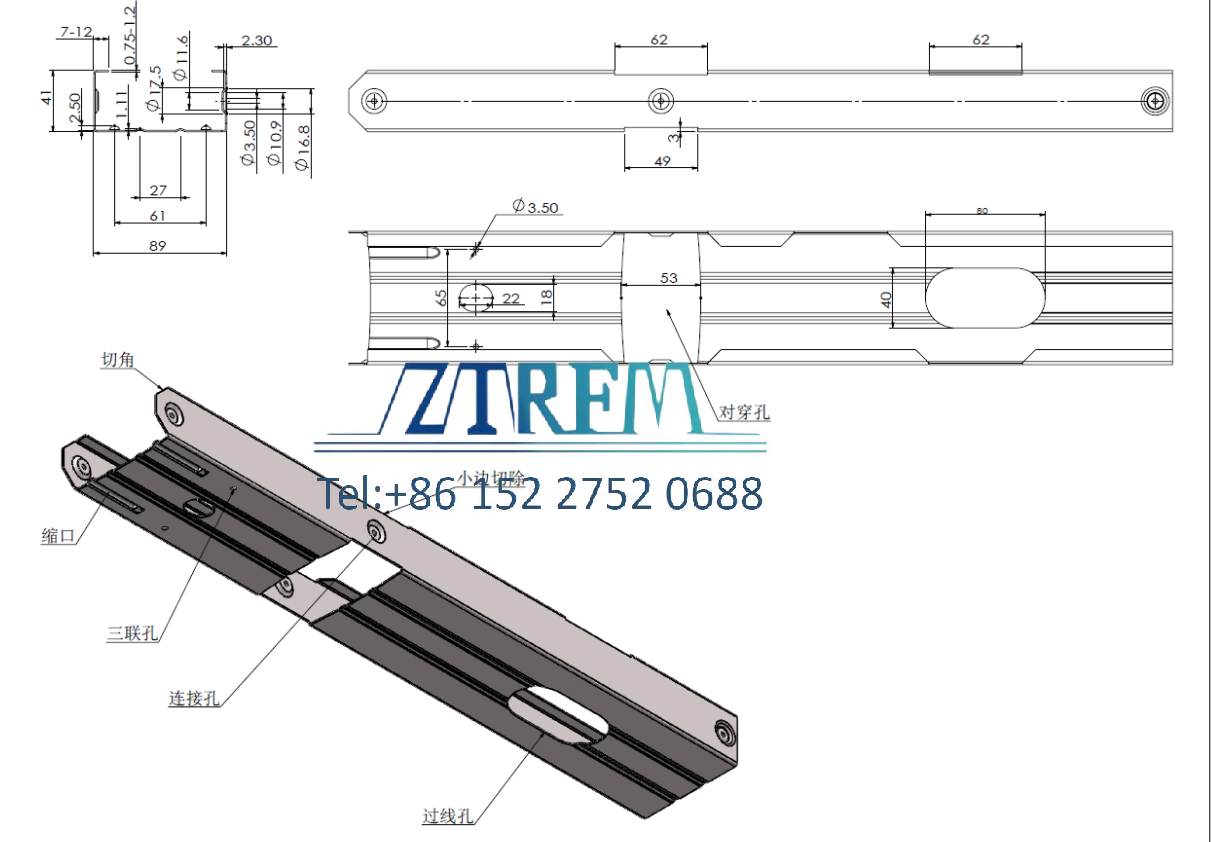

The C-shaped steel produced by the light steel frame roll forming machine for light steel villas can meet the construction requirements of the entire light steel villa.

Currently, villa framing machines are available in various models to meet the different size and thickness requirements of building structures.

The following are the commonly used models of villa framing machines on the market:

一、C89

•  For small villas with low floors (such as 1-3 floors) and relatively single web size requirements for light steel frame , a general C89 LGSF machine is sufficient.

•  The steel frame processed by it has a web width of 89mm, which can meet the needs of common wall and roof structures and is suitable for light steel villas with less than 4 floors.

•  The price is also relatively affordable.

•  Material thickness:0.75mm-1.2mm.

二、C140

• For multi-story or large villas and villas with special structural requirements, such as large-span spaces and high roofs, models with larger sizes and stronger performance need to be considered.

•  For example, the C140 keel machine can process steel frame with web width of 89mm-140mm and can provide stronger support and stability.

•  It is suitable for higher buildings.

•  Material thickness:0.75mm-1.2mm.

三、C200

•  This LSF Roll Forming Machine, specifically designed for manufacturing studs and trusses for high-rise residences, villas, and apartments, as well as walls and floors.

•  It is suitable for C＆U steel profiles with different web widths ranging from 75mm to 200mm.

•  The LSF Roll Forming Machine also features intelligent profile changing functionality, meeting the requirements of various structural systems.

•  Material thickness:0.75mm to 1.6mm. So the steel frame is much stronger.

四、C250

•  It is suitable for C＆U steel profiles with web widths ranging from 75mm to 250mm. It can produce bigger profiles, similar to the purlin machine.

• Material thickness:0.75mm to 2.0mm. The strength of the frame is near the purlin

五、C300

• It is suitable for C＆U steel profiles with widths ranging from 89mm to 305mm.

• The size is the same as the purlin machine.

• Material thickness:0.75mm to 2.5mm.

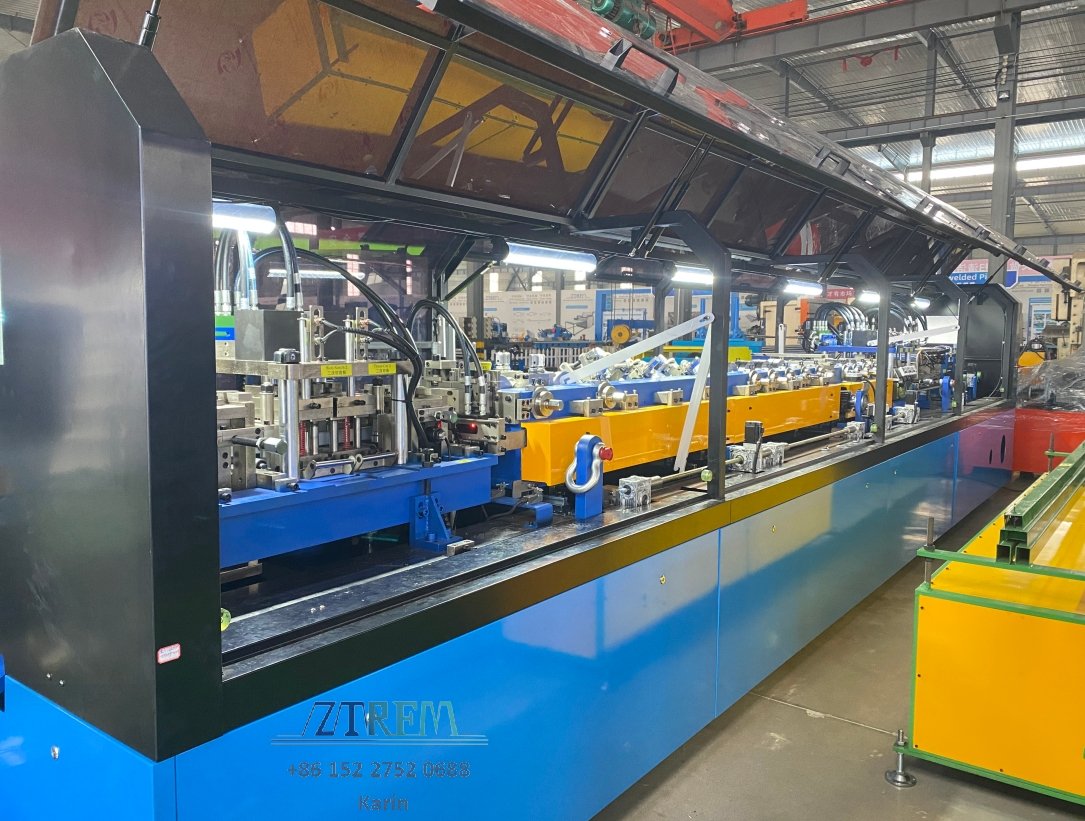

This video shows C250 villa machine is producing light steel frames.

You can choose a suitable type of machine for your project.

If you need help, you are welcome to contact us.
